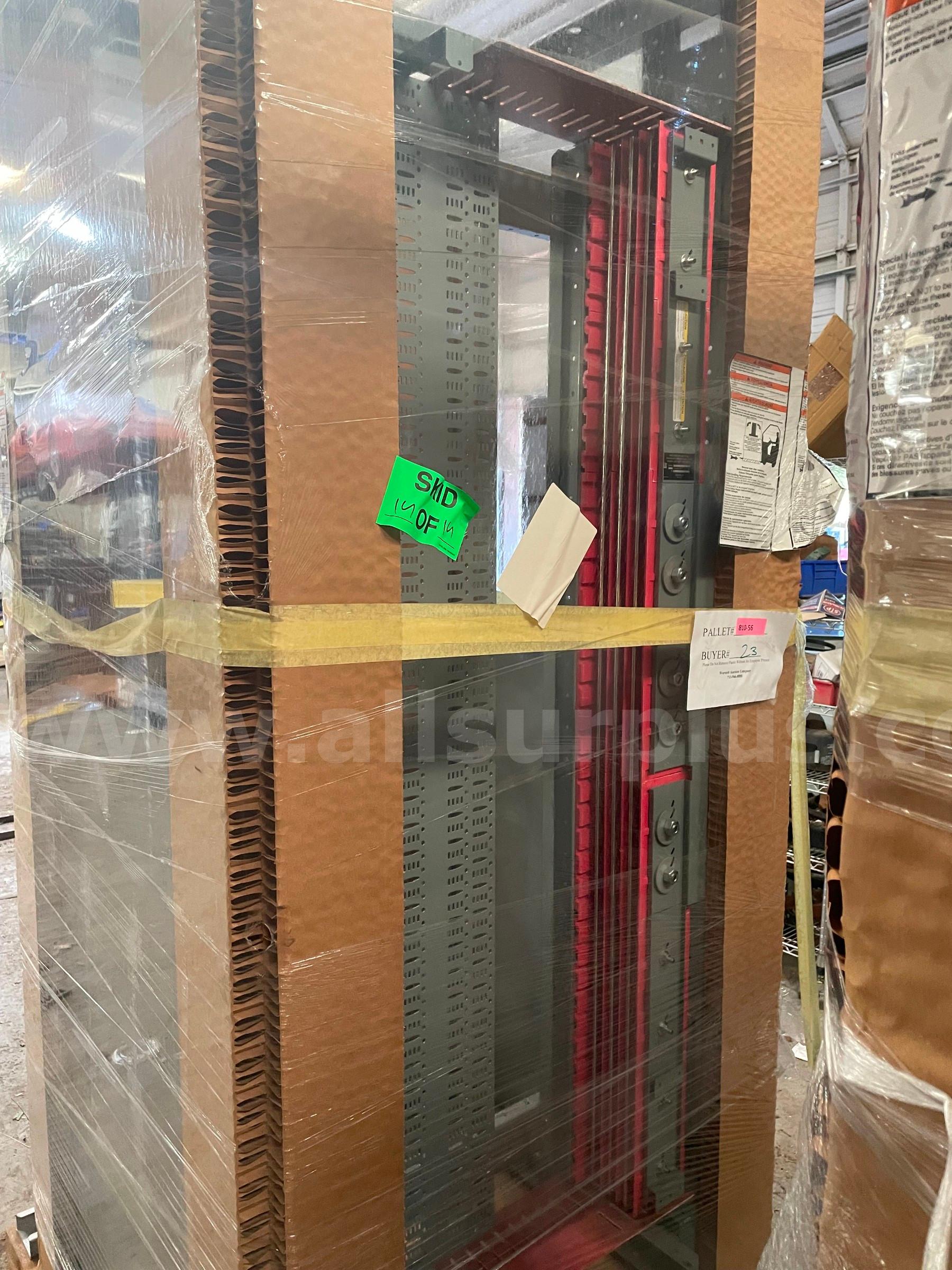

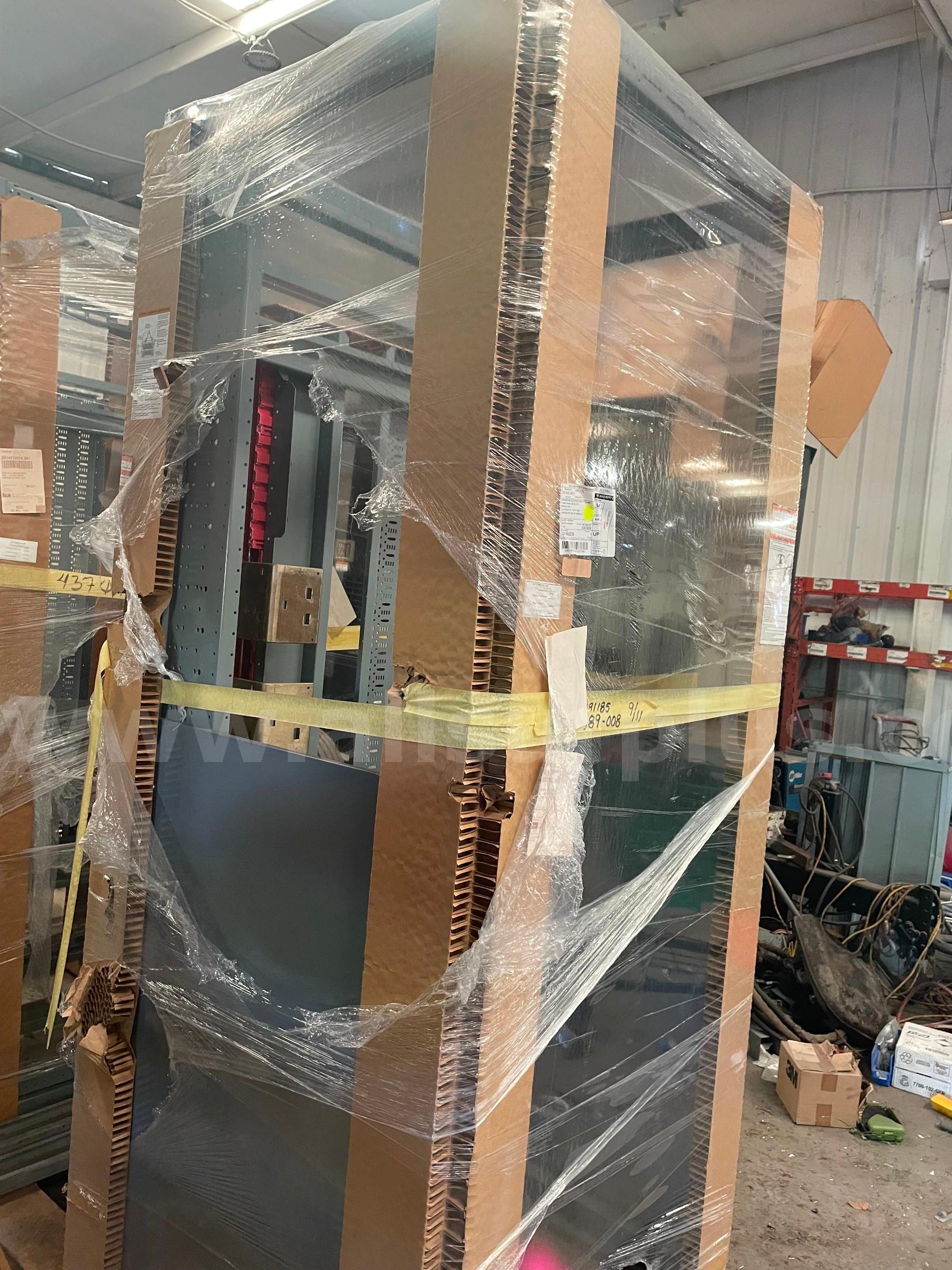

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Square D 1600A Government Surplus Auction - Photo #2

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Square D 1600A Government Surplus Auction - Photo #3

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Square D 1600A Government Surplus Auction - Photo #4

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Square D 1600A Government Surplus Auction - Photo #5

(1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Square D 1600A Government Surplus Auction - Photo #6

Item Specifications & Details

Manufacturer / Make	Square D
Model	1600A
Fuel Type	Electric
Indexed Keywords	#square_d #1600a

Item Description & Seller Notes

1) ea. Square D CF16R63C Switchboard Interior CU Single-Row Ctr-Fed 1600A 63H 24" Depth Key Specifications Model: CF16R63C. Rated operational current: 1600 A. Bus material: Copper (CU). Construction: Single-Row, Centre-Fed. (“Ctr-Fed”) Height: 63 in (1600.2 mm) approximately. Width: 36 in. Depth: 24 in. Cable entry: Center right side. Series/Range: I-Line™. Graybar Country of origin: United States. Description / Application Notes This is the interior unit of a switchboard; it is designed to be assembled into the I-Line switchboard frame/enclosure system. Because it is “single-row” and “centre-fed”, the bus and feed connections are arranged such that the supply comes into the centre right side, and the entire row of incoming/outgoing devices sit in one straight row. With 1600 A copper bus capacity, it’s suited for medium to heavy commercial or industrial distribution switchboard use. Depth of 24″ allows for compact wall-mounted or floor-mounted switchboard configurations when space is constrained. The 63″ height fits within standard switchboard enclosures with roughly 5-foot tall interior space. As it's copper bus, the unit provides good conductivity, lower losses, and better thermal performance compared to aluminum bus equivalents (assuming correct sizing). Key Specifications Model: CF16R63C. mayerelectric.com +3 Schneider Electric +3 crescentelectric.com +3 Rated operational current: 1600 A. Schneider Electric +1 Bus material: Copper (CU). Schneider Electric +1 Construction: Single-Row, Centre-Fed. (“Ctr-Fed”) crescentelectric.com +1 Height: 63 in (1600.2 mm) approximately. Schneider Electric Width: 36 in. mayerelectric.com +1 Depth: 24 in. mayerelectric.com +1 Cable entry: Center right side. mayerelectric.com +1 Series/Range: I-Line™. Graybar Country of origin: United States. crescentelectric.com Description / Application Notes This is the interior unit of a switchboard; it is designed to be assembled into the I-Line switchboard frame/enclosure system. Because it is “single-row” and “centre-fed”, the bus and feed connections are arranged such that the supply comes into the centre right side, and the entire row of incoming/outgoing devices sit in one straight row. With 1600 A copper bus capacity, it’s suited for medium to heavy commercial or industrial distribution switchboard use. Depth of 24″ allows for compact wall-mounted or floor-mounted switchboard configurations when space is constrained. The 63″ height fits within standard switchboard enclosures with roughly 5-foot tall interior space. As it's copper bus, the unit provides good conductivity, lower losses, and better thermal performance compared to aluminum bus equivalents (assuming correct sizing).

Location & Pickup Information
